Epson SureColor F9470H 64″ High Speed Dye-Sublimation (with Fluorescent Ink)

Get the all-new 64 inch dye sublimation 6-color printer from Epson!

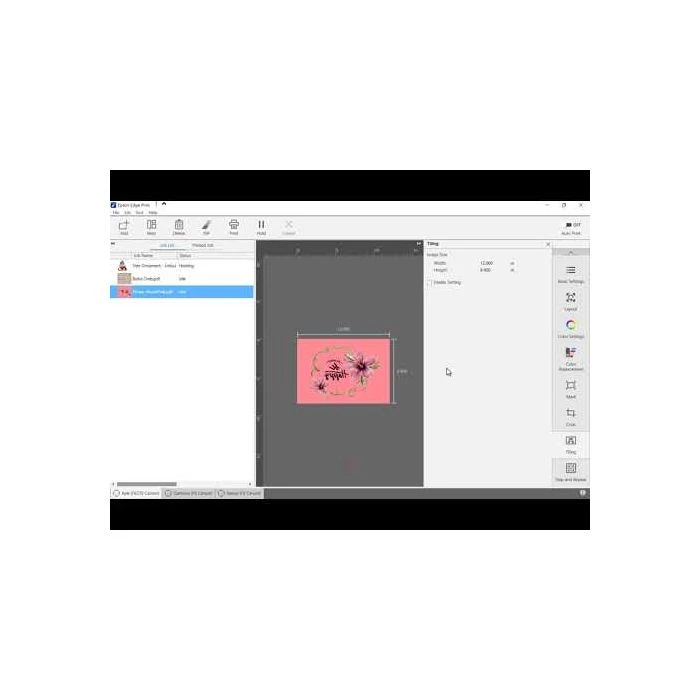

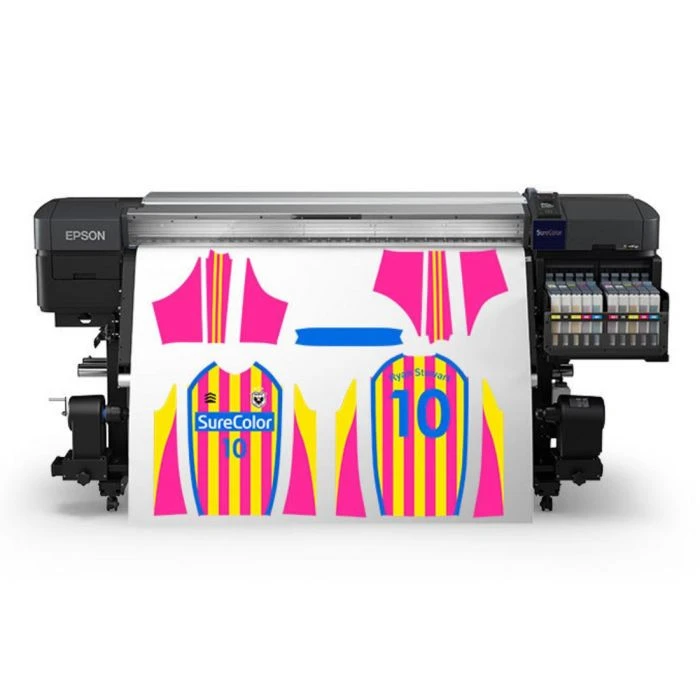

Produce vibrant apparel, soft signage, decor and more with the high-performance SureColor F9470H 64-inch printer. Purposefully designed for high-visibility dye-sublimation printing, the F9470H features the full spectrum of brilliant UltraChrome DS6 ink, including Fluorescent Pink and Fluorescent Yellow, for exceptional color saturation and brightness. The perfect choice for high-volume, industrial environments, the F9470H includes dual PrecisionCore printheads and delivers outstanding-quality prints at speeds up to 1,169 sqft/hour1. A truly turnkey solution, the F9470H arrives with Epson Edge workflow software, highly accurate roll-to-roll media support system with advanced auto paper-tension control, and high-capacity ink tanks for seamless 24/7 production.

Check out our Product Sheet – found under Downloads!

Included:

• Epson F9470 6 color Sublimation Printer
• In-box Ink Fill Volume – 3,000 mL each x CMYHDK² and 2,000 mL each x FyFp²
• Warranty – Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage

---

Print:

• Printing Technology: Dual advanced PrecisionCore^®TFP^® 8-channel, drop-on-demand, inkjet printhead with ink-repelling coating technology
• Minimum Ink Droplet Size: Variable Droplet Technology
• Maximum Print Resolution: 1440 x 720 dpi
• Print Speed:
  • Speed: up to 1,169 sq ft/hr
  • Sports apparel: up to 568 sq ft/hr
  • Fashion/signage: up to 1,004 sq ft/hr

Ink:

• Ink Type: UltraChrome DS6 ink technology; 5-color
• Ink Configuration: C, M, Y, HDK, Fy, Fp
• Replacement Ink: UltraChrome DS Ink
  • High Density Black Ink Packs (T46C820)
  • Cyan Ink Packs (T46C220)
  • Magenta Ink Packs (T46C320)
  • Yellow Ink Packs (T46C420)
  • Fluorescent Pink Ink Packs (T46C520)
  • Fluorescent Yellow Ink Packs (T46C620)

General:

• Operating Systems: Windows^® 10 and 8.1
• System Requirements:
  • Minimum PC Requirements: 2GHz CPU, 2GB RAM, 120GB HDD, DVD-ROM or Internet connection
  • Recommended PC Specifications: 3GHz or higher quad core CPU, 8GB RAM, 500GB SSD, and high-speed Internet connection

Temperature: Operating (recommended): 59 to 77F (15 to 25C). Operating: 59 to 95F (15C to 35C)

Humidity: Operating (recommended): 40 – 60% (no condensation). Operating: 20 – 80% (no condensation)

Sound Level: Less than 59 dB(A) according to ISO 7779

Dimensions: 103″ x 37″ x 53″ (2,620 mm x 934 mm x 1,332 mm) (W x D x H)

Weight: 639 lb (290 kg)

Country of Origin: China

Warranty: Standard 1-year limited warranty. Optional Epson Service programs available for a total of 3 years of coverage

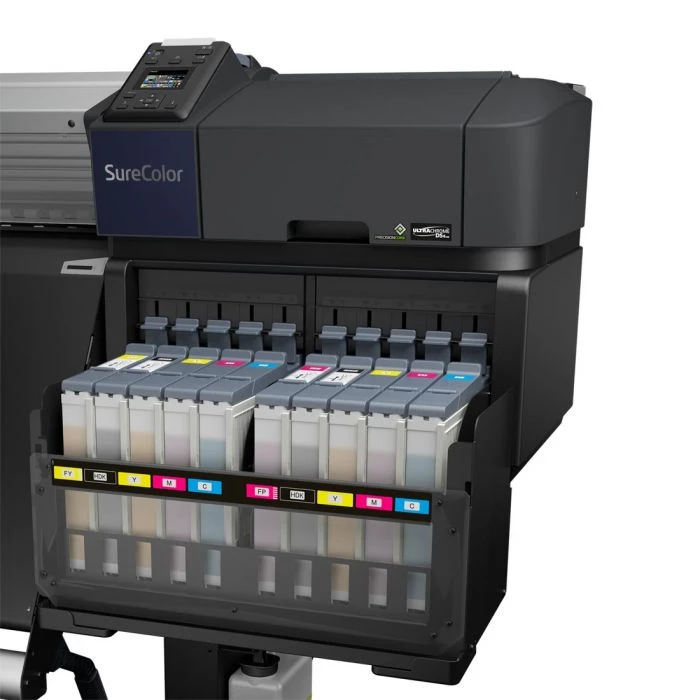

Ink Supply System:

• Ink Supply Fill Volume: 3,000 mL each x CMYHDK² and 2,000 mL each x FyFp²

• In-box Ink Fill Volume: 3,000 mL each x CMYHDK² and 2,000 mL each x FyFp²
• Ink Shelf Life: 2 years from printed production date Printer is designed for use with Epson ink packs only, not third-party ink systems*

Printable Area and Accuracy:

• Maximum Paper Width: 64″
• Minimum Paper Width: 11.8″
• Maximum Printable Width: Up to 63.6″

Sheet Media Handling:

• Left/Right Margins: 0.20″ (0.40″ total)

Roll Media Handling:

• Single Roll-to-Roll / Top-loading Roll: 64″ wide
• Media Core: 2″ or 3″ core diameter
• Maximum Roll Diameter: Up to 9.8″
• Maximum Roll Weight: Up to 100 lb
• Media Thickness: From 45 gsm to 1 mm thick
• Take-up Reel: Fully automatic “wind in” or “wind out” with tension control

Printer Details:

• Printer Language: Epson ESC/P^® raster
• Interfaces: 1000Base-T Ethernet (1 port), Hi-Speed USB 2.0 (1 port)

Power:

• Rated Voltage: AC 100 – 120 V; 200 – 240 V
• Rated Frequency: 50 / 60Hz
• Rated Current: 10.0 A at 100 – 120 V, 5.0 A at 200 – 240 V
• Power Consumption:
  • Printing: approx. 570 W or less
  • Power Off: approx. 1.0 W
  • Sleep Mode: approx. 17 W
  • Standby Heaters On: 340 W

Power Requirements: Requires two outlets
